Amarillo Lot Striping: fire lane striping in Amarillo, Texas
Amarillo Lot Striping marks fire lanes on commercial and multifamily property in Amarillo, and the first thing we ask for is whatever documentation exists about what that lane is supposed to be. Fire lane marking is the one thing on a parking lot where the requirement comes from a code official rather than from convention, and the requirement is site-specific.
The requirement is local, not universal
The International Fire Code sets the baseline for fire apparatus access roads: an unobstructed width of at least 20 feet and an unobstructed vertical clearance of at least 13 feet 6 inches, with greater widths where buildings are taller or where aerial apparatus access is required. It also provides that access roads shall be marked where required by the fire code official.
That last clause is why there is no single national answer to how a fire lane should be painted. The colour, the legend wording, the spacing of the legends and whether the kerb is painted are decided for your property by the authority having jurisdiction. In Amarillo that is the city fire marshal, working from the fire code as the city has adopted and amended it.
| Unobstructed width | 20 ft minimum | Greater for taller buildings and aerial access |
|---|---|---|
| Vertical clearance | 13 ft 6 in minimum | |
| Marking | Where required by the fire code official | This is the clause that makes it site-specific |
| Common Texas treatment | Red kerb, white lettering | Confirm for your property rather than assuming |
| Legend | FIRE LANE NO PARKING | Repeated at intervals set by the AHJ |
| Signage | Frequently required in addition to paint |
Why we ask for the paperwork first
On most properties somebody at some point received a letter, a plan approval or an inspection note describing the fire lane. That document is the specification. Painting a lane to general convention when the approval says something different creates a problem that looks solved, which is worse than one that looks unsolved.
Where nothing can be found, the honest path is to ask the fire marshal rather than to guess, and we will tell you that rather than quoting a lane we have invented. Repainting an existing lane exactly as it is, where the property has been inspected and passed with that marking, is the straightforward case and most of our fire lane work is exactly that.
We paint to the requirement. We do not set it
Nothing we paint makes a lane compliant by itself, and we are not in a position to tell you what your fire lane must look like. That determination belongs to the Amarillo fire marshal or the relevant authority for your jurisdiction.
What we can do is mark accurately to a specification you hold, tell you where the existing marking has drifted from it, and flag anything that has encroached on the lane since it was approved.
What encroaches on a fire lane over time
Fire lanes shrink. Not on paper, but on the ground, and almost always by accretion. A dumpster enclosure gets built a little wide. Bollards go in to protect a gas meter. A landscape bed is extended. Someone restripes the lot and picks up a row of stalls by taking a foot off the lane. Individually each is minor. Collectively they are how a 20 foot lane becomes 17 feet.
We measure the clear width along a fire lane before restriping it, because the lane is the one element on a parking lot where the striping contractor is often the last person to look at it before the next inspection does.
Common encroachments we measure for:
- Parking stalls striped into the lane on a previous restripe
- Dumpster and compactor enclosures built wider than the plan allowed
- Bollards, kerbing and wheel stops added to protect utilities
- Landscape beds and tree wells extended into the paved width
- Permanent signage, light bases and transformer pads set close to the lane edge
- Vertical obstructions: low canopies, building projections and sign gantries
Questions we get asked
What colour should a fire lane be in Amarillo?

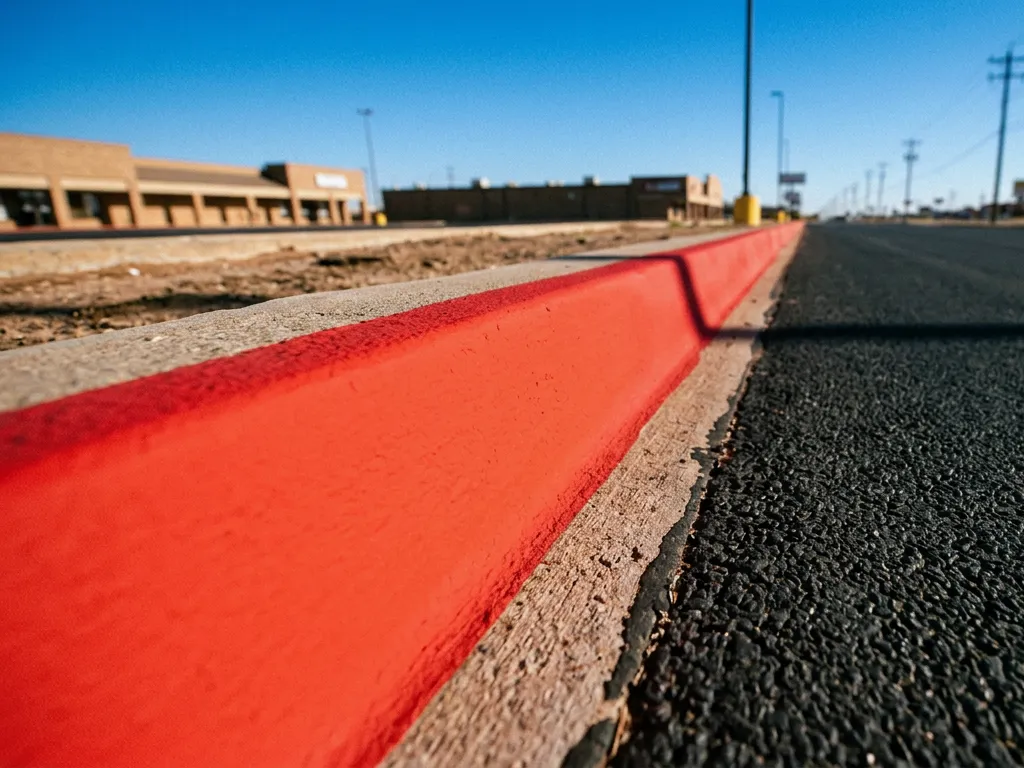

Red kerb with white lettering is the common treatment across Texas and is what you will see on most Amarillo properties, but the colour and legend for your property are set by the fire code official rather than by convention. If your property has an approval document or a past inspection note describing the lane, that is the specification we work to. If it does not, the question belongs with the fire marshal before we open a can of paint.
How wide does a fire lane have to be?
The International Fire Code baseline is an unobstructed width of at least 20 feet, with more required for taller buildings and where aerial apparatus access is needed, and a vertical clearance of at least 13 feet 6 inches. Local amendments and the specific approval for your site can differ, which is why we measure the clear width as it exists today and compare it against what the property was approved with.
How often do the FIRE LANE legends need repeating?
The interval is set by the authority having jurisdiction rather than by a national rule, and it varies. What we will do is match the interval already established on your property where it has been inspected and accepted with that spacing, and raise it with you where the existing spacing looks inconsistent along the length of the lane.
Can we park in the fire lane after hours?
That is not a question a striping contractor can answer for you, and the answer is not one we would want a property to take from a website. Fire apparatus access requirements do not generally have opening hours. If there is any doubt about what is permitted on your property, the fire marshal is the right place to ask.
Our fire lane has stalls painted in it. What now?
That happens, usually because a previous restripe followed the lines rather than the approval. We measure the clear width, show you what the lane is today against what it should be, and quote the removal of the encroaching lines along with the re-marking. Grinding out the old stalls is separate work from painting the lane and is priced as such.
Next step
Get a written price for your lot
We walk the lot, count what has to be painted, measure the accessible stalls and give you an itemised schedule. No charge for the visit.
